Solar Motion Sensor Wall Light — IS-W150

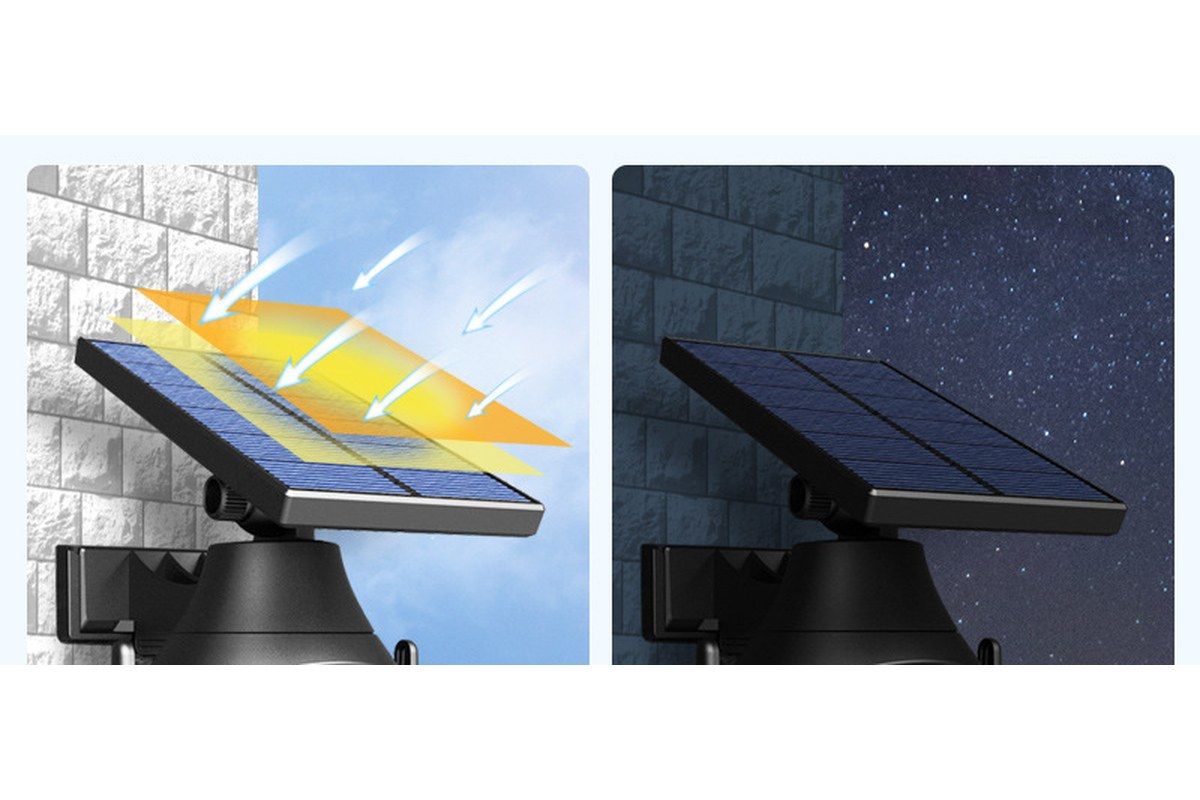

Wall-mounted solar security light in a camera-style housing, with a PIR motion sensor and an adjustable solar panel. A 5 V low-voltage system that charges by day and lights automatically after dark — no wiring to run. Supplied in three configurations: rotating solar panel, fixed panel, or rotating panel with remote control.
- Rated power5 W (manufacturer-stated)
- ProtectionIP65
- System voltage5 V DC low-voltage
- SensorPIR motion sensor
- Net weight409–425 g per configuration
Technical Specifications
| Configurations | K23 (solar panel rotates) · K42 (fixed panel) · K23 + remote control |
|---|---|
| Rated power | 5 W (manufacturer-stated — true output to be confirmed against the datasheet) |
| System voltage | 5 V DC (low-voltage installation) |
| Light source | LED (2835 SMD) |
| Protection rating | IP65 |
| Runtime | 6–12 hours per charge (manufacturer-stated) |
| Dimensions | 145 × 120 × 170 mm |
| Net weight | 418 g (rotating panel) · 409 g (fixed panel) · 425 g (with remote) |
| Certification | CE (EU) as marked by the manufacturer; copies provided with the datasheet |
Values are stated in the manufacturer's published data. Measured brightness, battery type and capacity, charging time and warranty terms are being confirmed and will be published with the full datasheet — available on request with your quotation.
Product Details
Applications
- Entrances & gatesMotion-triggered light where people arrive after dark.
- Compound walls & courtyardsPerimeter lighting without running any cable.
- Corridors & stairwellsAutomatic lighting for passages and shared stairs.
Typical applications for this product type — final suitability depends on the configuration confirmed for your order.
How to choose: detection, mounting height and mode
- Detection areaThe distance along the wall, gate or yard over which movement has to be picked up.
- Mounting heightDetection range and coverage change with height, so fix the mounting position first.
- Brightness modeDim until movement is detected and then bright, or full output whenever the light is on.

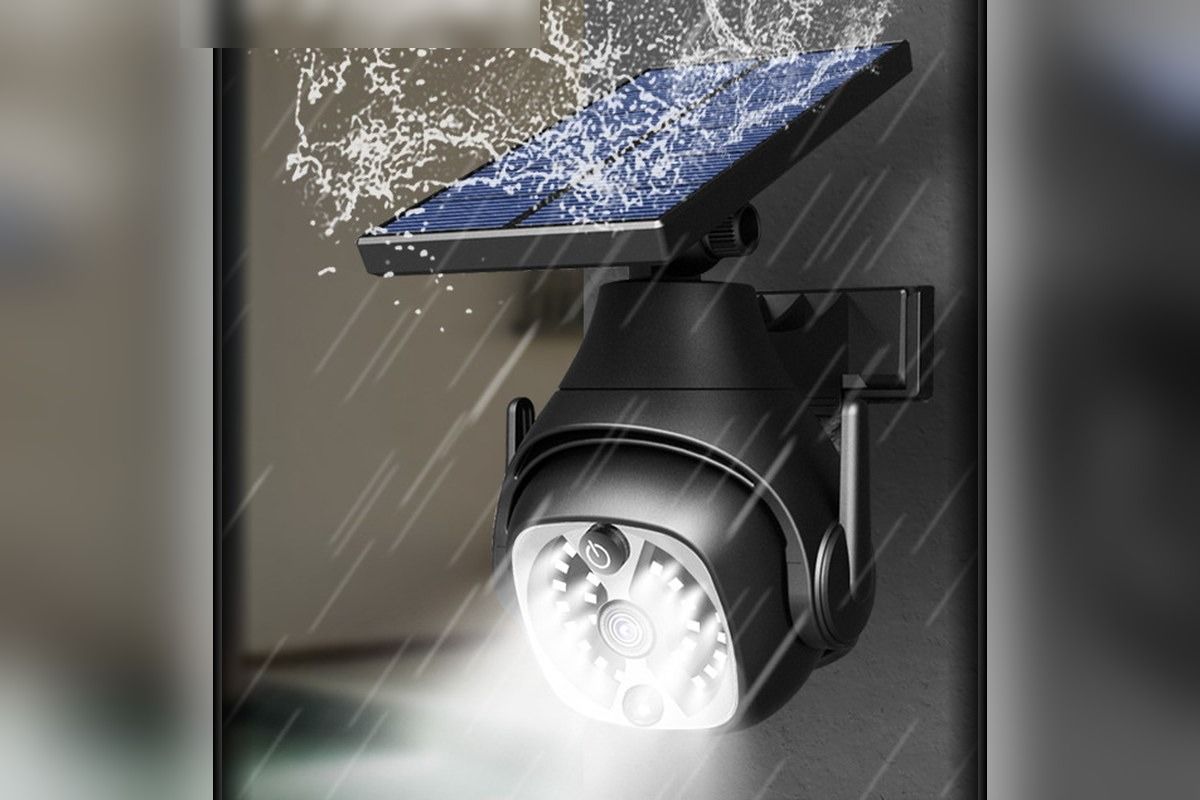

- Weather exposureHow exposed the mounting point is, so the IP rating can be matched to the site.
Wholesale & Documentation
- Minimum order quantitySet per model by the manufacturer and stated in your quotation — never assumed in advance.
- SamplesAvailability and cost confirmed before any order; sample freight is quoted with it.
- Lead time & packingProduction lead time, carton data and carton marking confirmed per order before deposit.
- DocumentsInvoice, packing list and bill of lading; certificate of origin and conformity documents only where the manufacturer holds them for the exact model.
- Trade termsFOB or CIF against your destination port; other terms quoted on request.
Nothing above is a standing offer — each item is confirmed in writing against your own requirement. See how a wholesale order works.
What We Confirm Before Quoting
The specification table above reflects the manufacturer’s published data. Before a price is issued we confirm each of the following in writing, and send you the confirmed sheet together with the quotation.
- Light output — measured lumen output and the test method behind it, rather than a headline wattage figure.
- Battery — chemistry, voltage and rated capacity, and whether that capacity is nominal or usable.
- Solar panel — panel wattage, cell type and the conditions the rating refers to.
- Runtime — operating hours per night at each brightness setting, with the test condition stated.
- Ingress protection — the IP rating together with the test reference behind it.
- Warranty — warranty period, what it covers, and who handles a claim in your market.
- Packing — units per carton, carton dimensions and gross weight.
- Minimum order and lead time — MOQ per model, production lead time and shipping schedule.
- Documentation — which certificates and shipping documents can be issued for your destination country.
If a value cannot be confirmed it is neither published here nor quoted as fact.
Request a Quote for IS-W150
Tell us the configuration you need, your estimated quantity and destination market. Specifications, packing and wholesale terms are confirmed in writing before any quotation is issued.
