Solar Home Lighting Kit — IS-K100
A compact off-grid lighting kit for households beyond reliable grid access. A 5 W solar panel charges a portable rechargeable control unit, which powers 1 W LED lamps on cables (2 to 5 lamps) and provides a 5 V USB output for phone charging.
- Solar panel5 Wp
- Battery6 Ah rechargeable, built into control unit
- LED lamps1 W × 2–5 pcs
- Outputs5 V USB + 6.4 V lamp sockets
- Net weight1.6–2.2 kg per unit
Technical Specifications
| Solar panel | 5 Wp solar panel |
|---|---|
| Battery capacity | 6 Ah rechargeable battery (built into control unit) |
| LED lamp power | 1 W per lamp |
| Number of lamps | 2 / 3 / 4 or 5 lamps (configuration selected per order) |
| Charging method | Solar panel |
| Output voltage | 6.4 V DC lamp sockets |
| USB output | 5 V USB port |
| Net weight | Approx. 1.6–2.2 kg per unit (varies by lamp count) |
Values are stated in the manufacturer's published data. Battery type and voltage, runtime, charging time, ingress protection and warranty terms are being confirmed and will be published with the full datasheet — available on request with your quotation.
Product Details

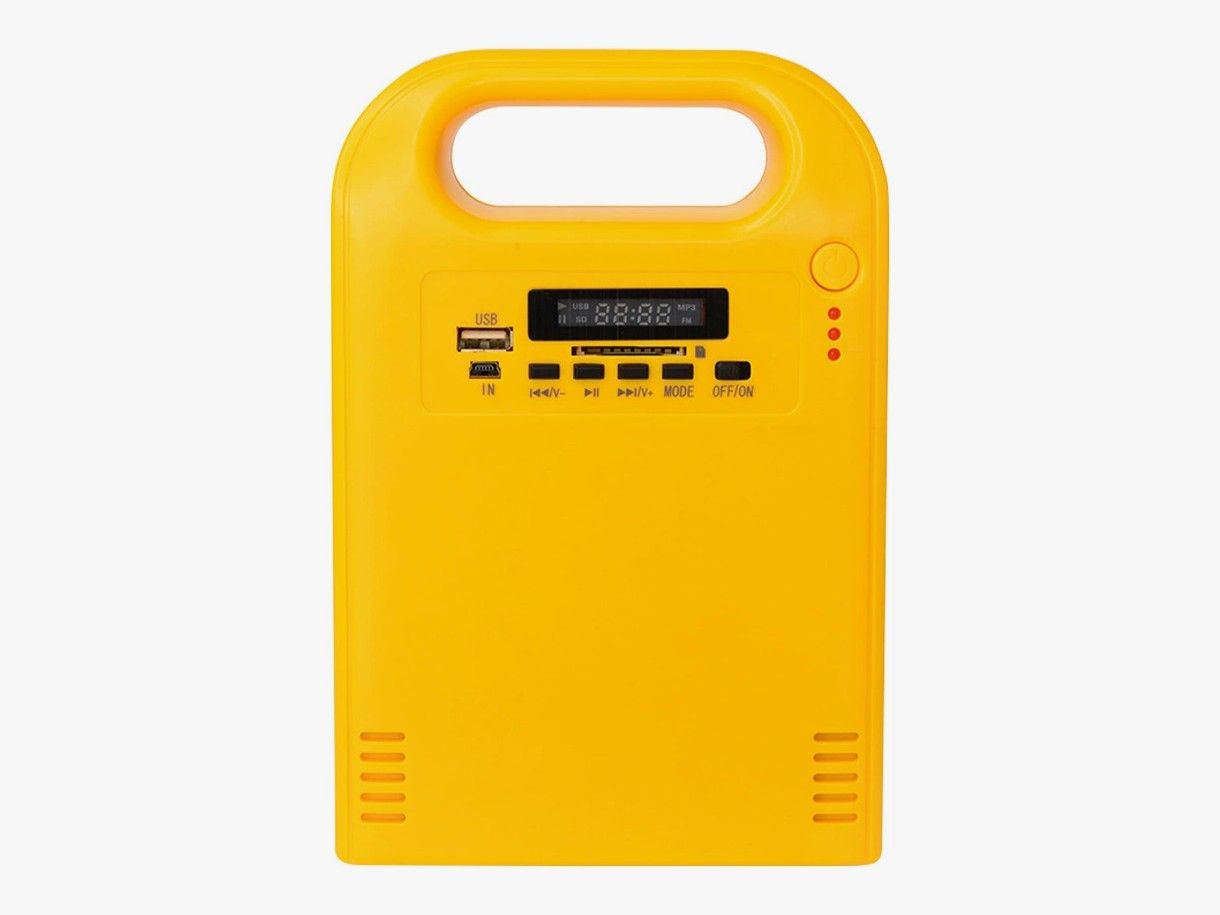

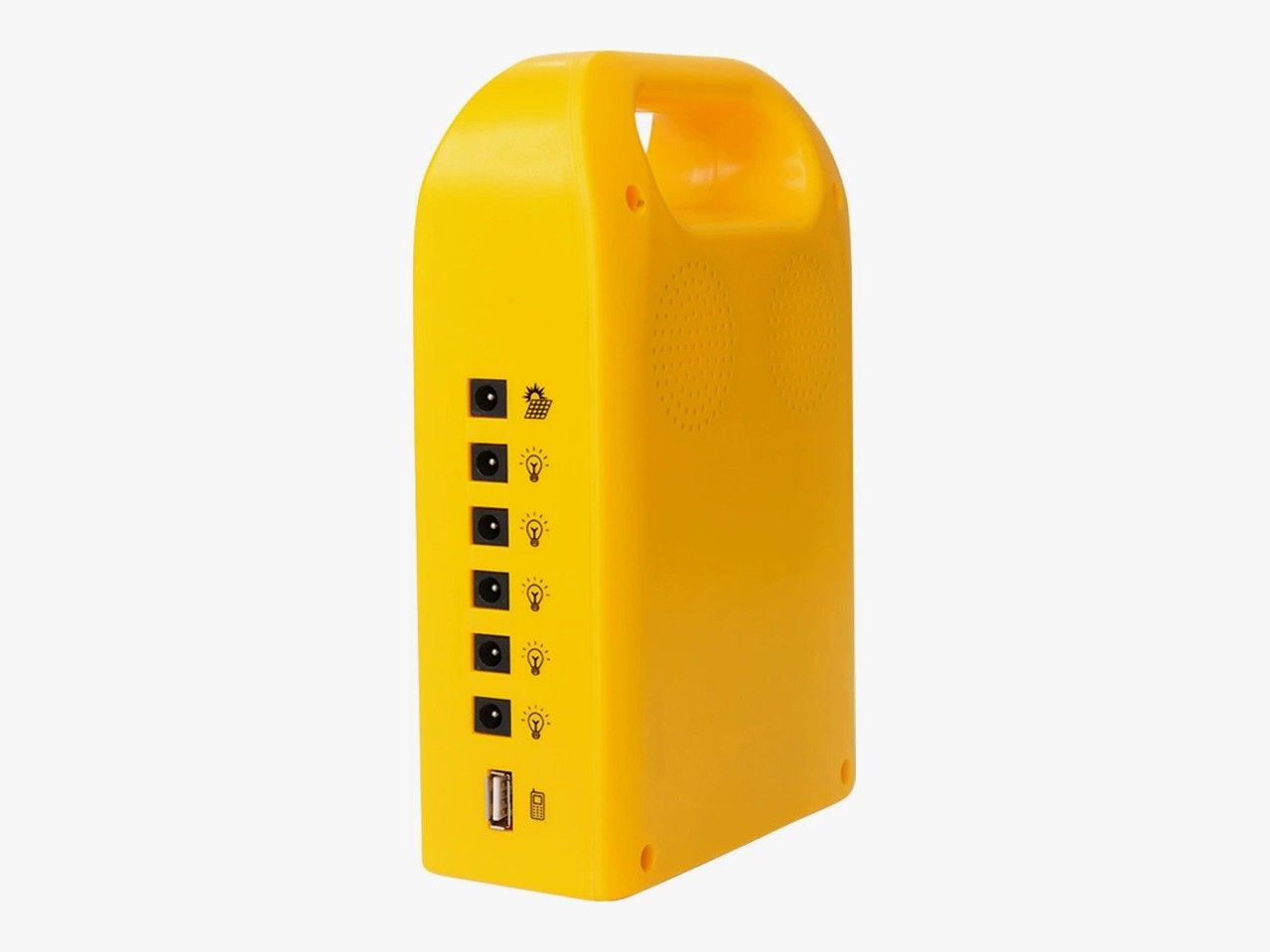

Product photographs on this page show the item described. Accessory, packaging and application photos are added as they become available.
Applications
- Off-grid & weak-grid householdsRoom lighting where the grid is absent or unreliable.
- Rural homes & compoundsOne kit lights 2 to 5 rooms or points after dark.
- Phone chargingThe 5 V USB output charges phones alongside the lamps.
Typical applications for this product type — final suitability depends on the configuration confirmed for your order.
How to choose: light points, cable length and panel position
- Light pointsThe number of rooms or separate points decides how many lamps the kit needs; 2 to 6 lamps is the usual range for a household kit.
- Cable lengthLamp cable decides how far one panel can reach, so check it against the layout of the building before choosing a configuration.
- Panel positionFixed roof or wall mounting with clear daylight; a home kit is not designed to be moved between positions.
- Phone chargingConfirm whether a USB output is required and roughly how many phones a day it has to charge.
Packaging & Wholesale Information
| Packing | Each unit packed in a carton of 25 × 9.5 × 22 cm, approx. 1.6–2.2 kg per unit depending on the number of lamps. |
|---|
Packing data is stated in the manufacturer's published data. Wholesale terms are confirmed against each enquiry — send your requirements with the quote request below.
What We Confirm Before Quoting
The specification table above reflects the manufacturer’s published data. Before a price is issued we confirm each of the following in writing, and send you the confirmed sheet together with the quotation.
- Light output — measured lumen output and the test method behind it, rather than a headline wattage figure.
- Battery — chemistry, voltage and rated capacity, and whether that capacity is nominal or usable.
- Solar panel — panel wattage, cell type and the conditions the rating refers to.
- Runtime — operating hours per night at each brightness setting, with the test condition stated.
- Ingress protection — the IP rating together with the test reference behind it.
- Warranty — warranty period, what it covers, and who handles a claim in your market.
- Packing — units per carton, carton dimensions and gross weight.
- Minimum order and lead time — MOQ per model, production lead time and shipping schedule.
- Documentation — which certificates and shipping documents can be issued for your destination country.
If a value cannot be confirmed it is neither published here nor quoted as fact.
Request a Quote for IS-K100
Tell us the configuration you need, your estimated quantity and destination market. Specifications, packing and wholesale terms are confirmed in writing before any quotation is issued.
